Conductivity Sensors





IN-LINE & SUBMERSIBLE CONDUCTIVITY SENSORS

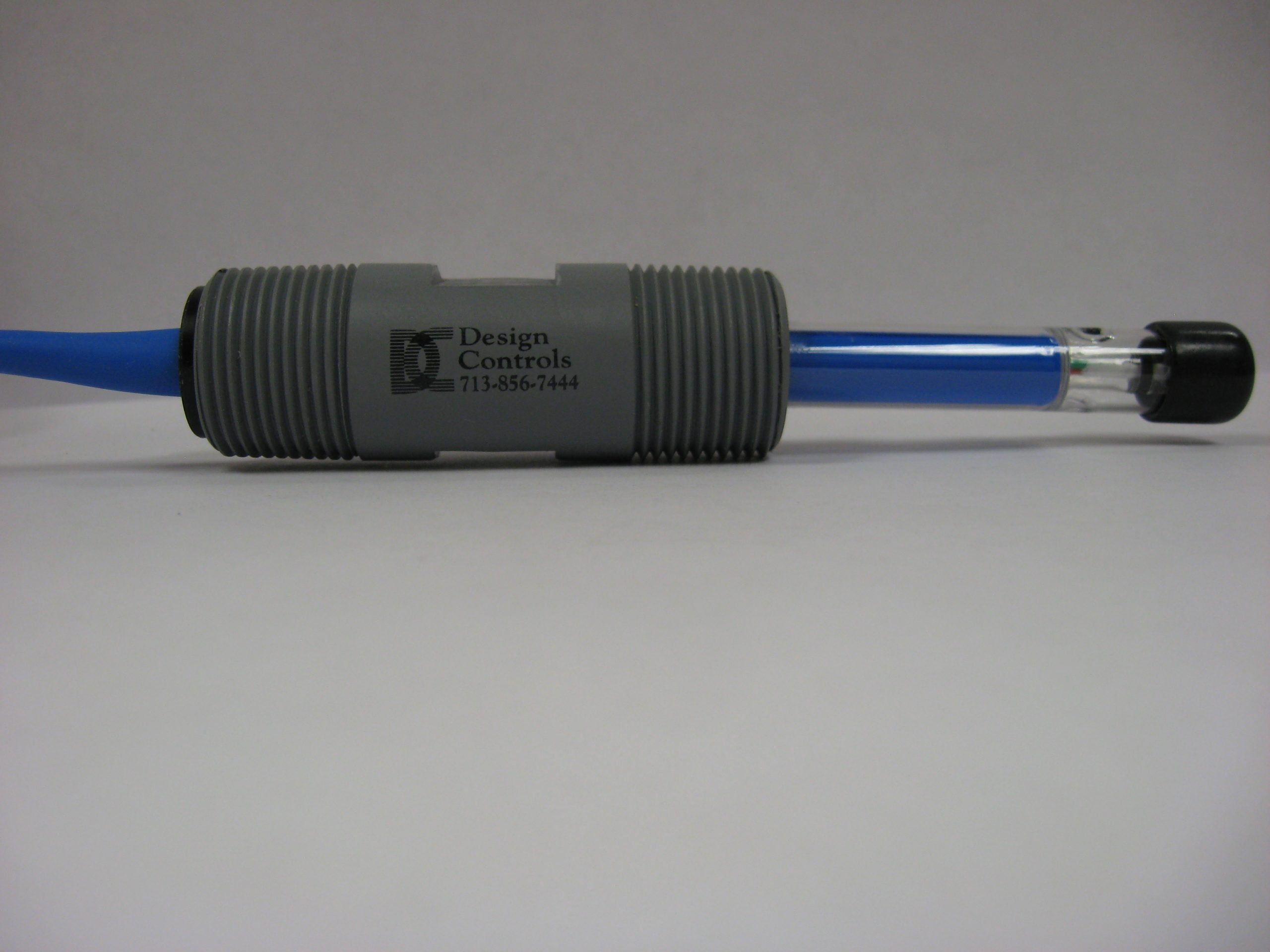

Conductivity sensors from Design Controls are designed for continuous conductivity monitoring, either installed in a pipe or submersed in a tank. They are constructed of Ryton and have 3/4″ MNPT treaded ends. They may be used up to 150 psig.

These two electrode conductivity sensors are compatible with most existing analyzers and are available in a variety of mounting and temperature compensator configurations.

In addition, the newest design option incorporates a detachable lead so that removal of the sensor can be made without crimping or entangling the probe cable.

Ordering Information:

  • Detachable Lead, 3′ (4-pin Female detachable to Tinned leads)
  • Detachable Lead, 10′ (4-pin Female detachable to Tinned leads)
  • Detachable Lead, 30′ (4-pin Female detachable to Tinned leads)
